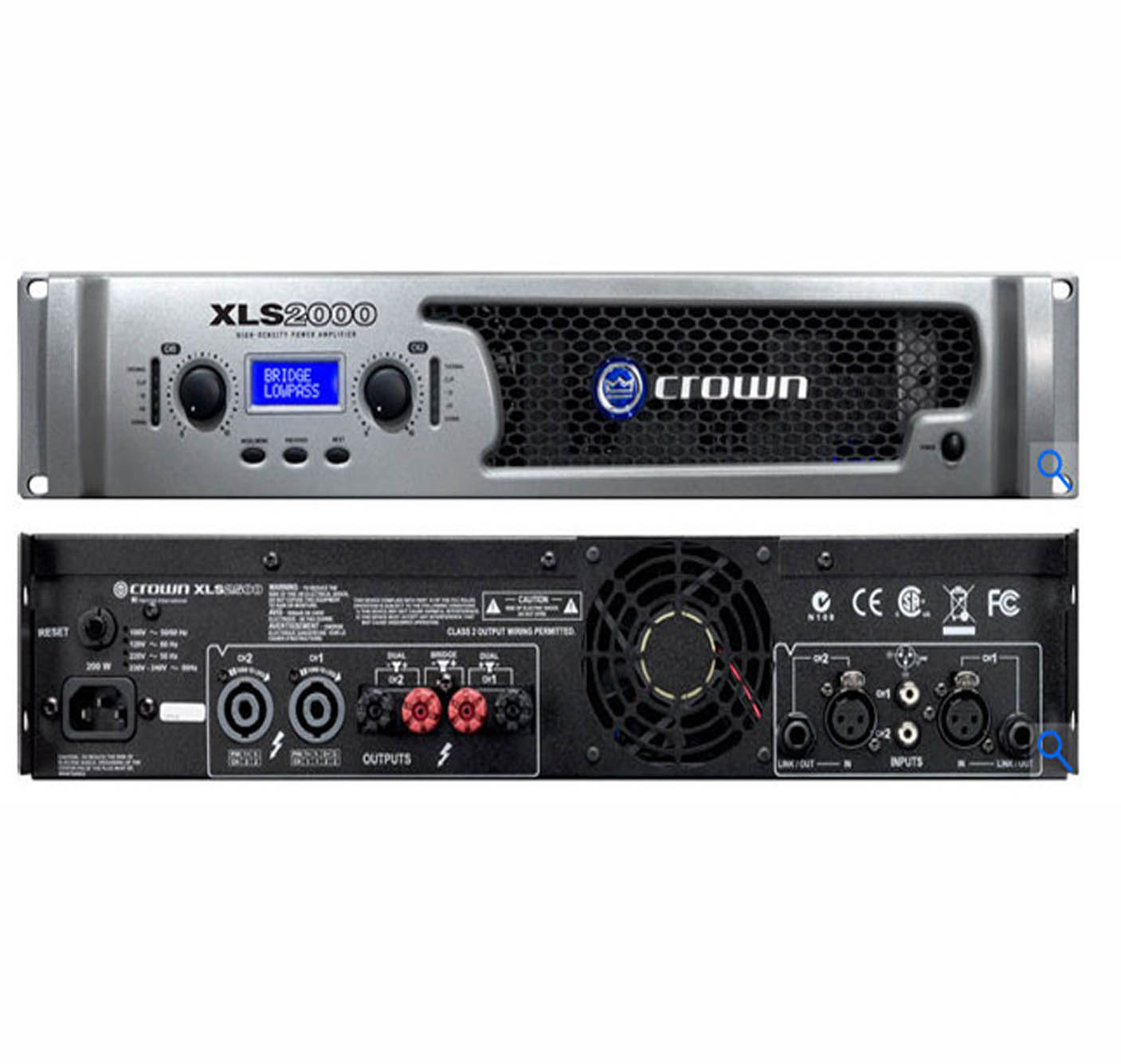

Crown XLS 2000 Power Amplifier

Crown XLS2000 DriveCore Series Power Amp Features:

• XLS High Performance, Lightweight Class D power amp weighs less than 11 lbs.
  Integrated PureBand Crossover System for better performance and control
  Peakx Limiters provide maximum output while protecting your speakers
  XLR, 1/4", RCA inputs provide outstanding flexibility
  1/4" Inputs can be used as loop-thrus to distribute signal to additional amplifiers Efficient forced-air fans prevent excessive thermal buildup
  Electronically balanced XLR inputs; touchproof binding post and Speakon outputs
  Precision detented level controls, power switch, power LED, and six LEDs indicate signal, clip and fault for each channel
  Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Crown XLS2000 DriveCore Series Power Amp Specifications:

• Minimum Guaranteed Power per channel, both channels driven: 1050W, Stereo, 2 Ohms (per ch.); 650W, Stereo, 4 Ohms (per ch.); 375W, Stereo, 8 Ohms (per ch.); 1300W, Bridge-Mono, 8 Ohms; 2100W, Bridge-Mono, 4 Ohms;

  Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
  Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, -1 dB
  Signal-to-Noise Ratio Rated as dBr to full rated 8Ohm power output (A-Weighted): XLS2000 > 103 dB
  Damping Factor (8 Ohm): 10 Hz to 400 Hz: > 200
  Crosstalk (below rated 8Ohm power): At 1kHz: > 85dB; At 20kHz: >55dB
  Input Impedance (nominal): 20 kOhm balanced, 10 kOhm unbalanced
  Load Impedance: 2 to 8 Ohm per channel in Stereo; 4 to 8 Ohm in Bridge Mono
  AC Line Voltage and Frequency Configurations Available (± 10%):120 VAC 60 Hz; 100 VAC 50/60 Hz; 220 and 240 VAC 50 Hz
  Ventilation: Flow-through ventilation from front to back
  Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
  Air Volume Requirements (per minute per unit): 80.15 ft (2.27 m )
  Integrated Processing: PureBand Crossover System; Crossover Filter: Linkwitz-Riley 24dB per Octave; Crossover Frequency Range: 50 HZ - 3 kHz: Crossover Mode: Crossover (CH1=LPF, CH2=HPF), LowPass (both channels LPF), HighPass (both channels HPF), Bridge (LPF or HPF); Peakx limiters: Channel independent clip limiter designed to provide maximum output while protecting your loudspeakers

  Input/Output: Input Connectors: XLR (one per channel), 1/4-Inch (one per channel), and RCA (one per channel). 1/4-Inch connectors can be used as loop-thrus to distribute signal to additional amplifiers. Output Connectors: Two 4-Pole Speakon Output Connectors accept 2-pole or 4-pole Speakon connectors. The top Speakon connector is wired for both channels so it can be used for bridgemono wiring or for stereo wiring of two speakers to a single Speakon connector. One pair of back-panel binding posts per channel; accepts banana plugs or bare wire. (European models do not accept banana plugs.)

  Dimensions: 19"W x 3-1/2"H x 10-3/4"D
  Weight: XLS2000: 10-3/4 lb.
