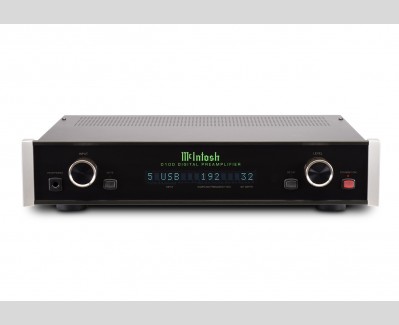

Pre McIntosh D-100  digital stereo

The new McIntosh D-100 is an exciting piece of equipment in which it has been designed with the "modern" audiophile in mind. It features no analog inputs at all, however D-100 preamplifier offers a total of five digital inputs all running thru an ultra-sophisticated 32-bit/192kHz DAC's including USB, Optical, and Coaxial Digital connectivity. (2 Coaxial, 2 Optical and 1 USB),

The McIntosh D-100 is also very flexible as it can be a simple solution to add digital music to an existing McIntosh audio system, allowing upgrading without having to replace your current McIntosh preamplifier or integrated amplifier. Or you can simply assemble a new system by simply adding a power amplifier and a pair of loudspeakers, as the D-100 offers both fixed and variable audio outputs. Connect your digital sources, such as a CD player, or a music server streaming lossless FLAC files directly to your power amp.

The McIntosh D-100 utilizes a powerful DAC Audio Engine that features an eight channel 32 bit, 192 kHz D/A converter. This type of audio processing power will deliver a wide dynamic range, with extremely low distortion that normally would be unheard of from other designs. The eight D/A converters used in the D-100 are what McIntosh calls in "Stereo Quad-Balanced Mode", all your music is reproduced with excellent sound staging, imaging, and musicality. The effect will be very prominent, and it will make you feel that you are experiencing your favorite recordings for the very first time!

The McIntosh D-100 is on display at The Stereo Shop, demonstrating thru a server streaming lossless music files, running thru a complete McIntosh audio system and loudspeakers. Come on in soon and allow us to demonstrate just what is possible with the new digital preamplifier that McIntosh is now offering, and what it can offer you to easily and fully enjoy all of your favorite music!

SPECIFICATION:

ELECTRONIC SPECIFICATIONS:

ULTRA LOW DISTORTION

• 0.002%

FREQUENCY RESPONSE, +0, -3DB

• 4Hz to 68,000Hz

MAXIMUM VOLTS OUT (BALANCED / UNBALANCED)

• 16/8 V RMS

INPUT IMPEDANCE (BALANCED / UNBALANCED)

• 44K ohm, 22K ohm

PHONO VOLTAGE GAIN

• N/A

HIGH LEVEL VOLTAGE GAIN

• N/A

SIGNAL TO NOISE RATIO

• 110dB

DUAL MONO POWER SUPPLY

• No

DUAL MONO, FULLY BALANCED

• Digital, Fully Balanced

CONNECTIVITY:

HEADPHONE OUTPUT

• Yes 1/4", High Drive

INPUTS UNBALANCED

• No

INPUTS BALANCED

• No

VARIABLE OUTPUTS UNBALANCED

• 1 Stereo

VARIABLE OUTPUTS BALANCED

• 1 Stereo

DIGITAL USB INPUT

• 1 (2.0, 32/192 Asynchronous)

DIGITAL COAXIAL INPUT

• 2

DIGITAL OPTICAL INPUT

• 2

PHONO MOVING MAGNET

• No

PHONO MOVING COIL

• No

RECORD PROCESSOR LOOP

• No

INPUT LEVEL MATCH

• No

HOME THEATER PASS THROUGH

• No

CONTROL:

TONE CONTROLS

• No

TONE BYPASS AND INPUT ASSIGN

• No

RS232 CONTROL INPUT

• No

POWER CONTROL OUTPUT

• Yes, 1

REAR PANEL DATA PORTS

• Yes, 1 in

REAR PANEL IR SENSOR INPUT

• Yes

GENERAL SPECIFICATIONS:

MULTI-CHASSIS OR SINGLE

• Single

OUTPUT METERS

• No

TUBE OR SOLID STATE

• Solid State

ON, POWER CONSUMPTION

• 20 watts

WEIGHTS & DIMENSIONS:

DIMENSIONS (W X H X D)

• 17.5" (44.45cm) x 3-7/8" (9.8cm) x 16" (40.64cm)

WEIGHT

• 13.5 lbs (6.1kg)

SHIPPING WEIGHT

• 28 lbs (12.7kg)
